SDEC is a large-scale company with a specialty in the production of diesel engines, engine parts, and generator sets. Today, SDEC produces seven series of engines: R, H, D, K, E, G and W series which used in our diesel generator sets.

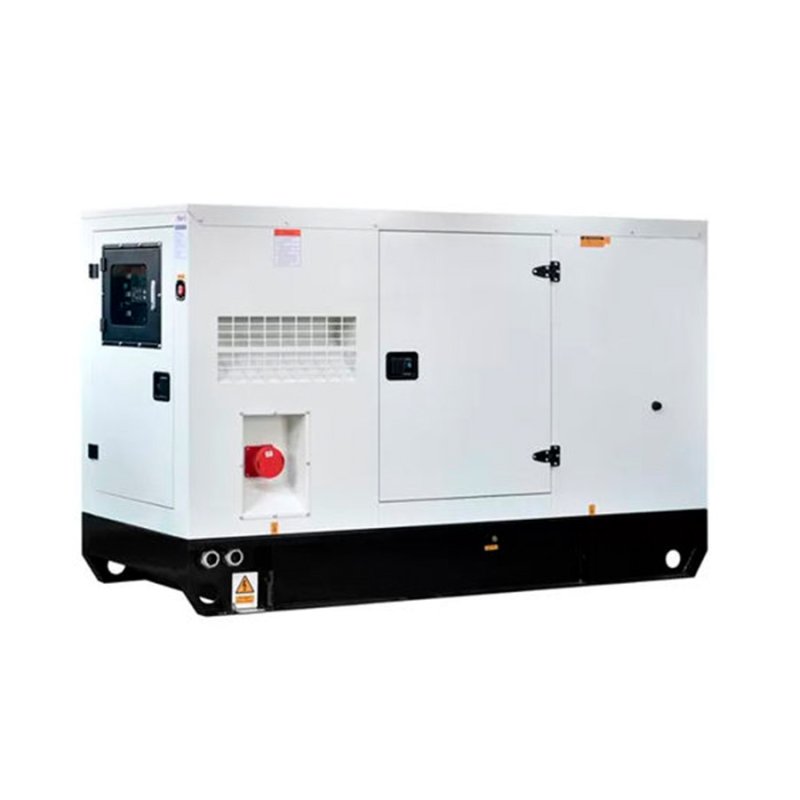

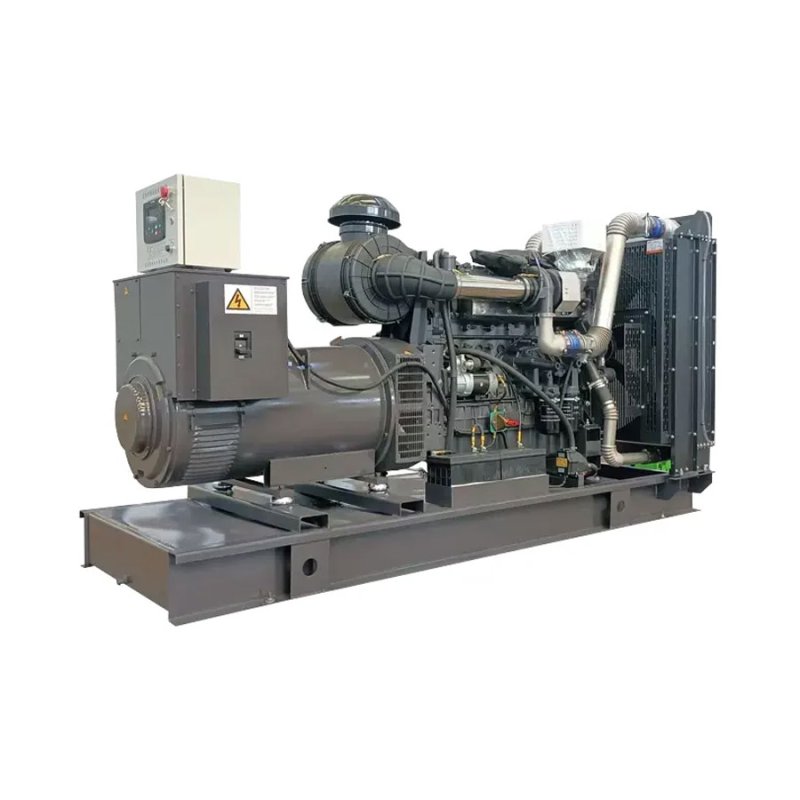

SDEC diesel generator sets are high powered electrical energy producers that deliver much needed reliability and efficiency.
Engine: SDEC
Fuel: Diesel
Frequency: 50HZ
Phase: Three-Phase
Rated Power: 50KW-800KW
Enclosure Type: Open/Silent
| Genset Model | 50HZ 1500RPM | Download | |||||
| Standby Power | Prime Power | Engine Model | Fuel Consumption | Dimension | Genset G.W. | ||
| KVA/KW | KVA/KW | L/h | mm | Kg | |||
| P-S55 | 68.75/55 | 62.5/50 | SC4H95D2 | 11.9 | 2300*850*1350 | 1350 | |
| P-S66 | 82.5/66 | 75/60 | SC4H115D2 | 14.3 | 2500*850*1450 | 1450 | |
| P-S90 | 112.5/90 | 100/80 | SC4H140D2 | 19 | 2700*900*1650 | 2100 | |
| P-S100 | 125/100 | 12.5/90 | SC4H160D2 | 21.4 | 2700*900*1650 | 2150 | |
| P-S110 | 137.5/110 | 125/100 | SC4H180D2 | 23.8 | 2700*900*1650 | 2050 | |
| P-S132 | 165/132 | 150/120 | SC7H205D2 | 28.6 | 2750*950*1700 | 2330 | |
| P-S143 | 178.75/143 | 162.5/130 | SC7H220D2 | 31 | 2750*950*1700 | 2520 | |
| P-S165 | 206.25/165 | 187.5/150 | SC7H250D2 | 35.7 | 2800*1050*1760 | 2600 | |
| P-S180 | 225/180 | 200/160 | SC8D280D2 | 38.1 | 2800*1050*1760 | 2650 | |
| P-S200 | 250/200 | 225/180 | SC9D310D2 | 42.9 | 2860*1100*1760 | 2700 | |
| P-S220 | 275/220 | 250/200 | SC9D340D2 | 47.6 | 2860*1100*1760 | 2800 | |
| P-S250 | 312.5/250 | 275/220 | SC10E380D2 | 52.4 | 2860*1100*1760 | 3070 | |
| P-S280 | 350/280 | 312.5/250 | SC13G420D2 | 60 | 2860*1140*1760 | 3400 | |
| P-S300 | 375/300 | 350/280 | SC12E460D2 | 66.7 | 3140*1360*1900 | 3850 | |
| P-S320 | 400/320 | 370/300 | SC13E500D2 | 71.4 | 3250*1470*1900 | 4000 | |
| P-S360 | 450/360 | 400/320 | SC13E550D2 | 76.2 | 3250*1470*1900 | 4250 | |
| P-S400 | 500/400 | 450/360 | SC25G610D2 | 85.7 | 3420*1600*1900 | 4700 | |
| P-S440 | 550/440 | 500/400 | SC25G690D2 | 95.2 | 3420*1600*1900 | 4800 | |
| P-S500 | 625/500 | 562.5/450 | SC27G755D2 | 107.1 | 3510*1650*1960 | 4820 | |
| P-S550 | 687.5/550 | 625/500 | SC27G830D2 | 119 | 3510*1650*1960 | 4900 | |
| P-S600 | 750/600 | 687.5/550 | SC27G900D2 | 131 | 3510*1650*1960 | 4930 | |
| P-S660 | 825/660 | 750/600 | SC33W990D2 | 142.9 | 3150*1650*1960 | 5000 | |
| P-S800 | 1000/800 | 900/720 | SC33W1150D2 | 171.4 | 3600*1700*2050 | 5200 | |
Mainly products are Diesel Generator Sets, Gasoline Generator Sets, Gas Generator Sets, and spare parts for generator, etc.
